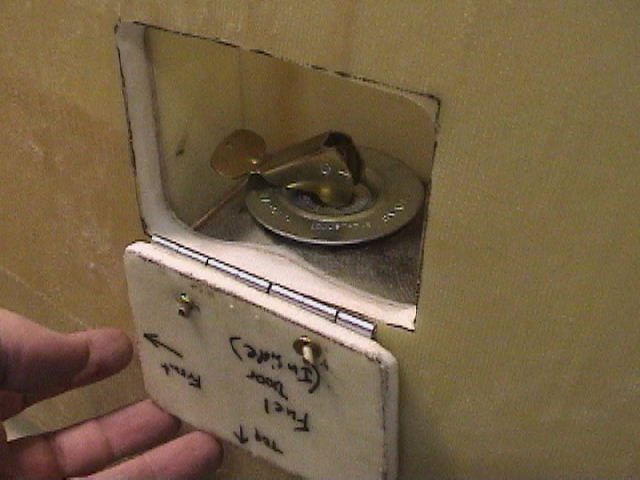

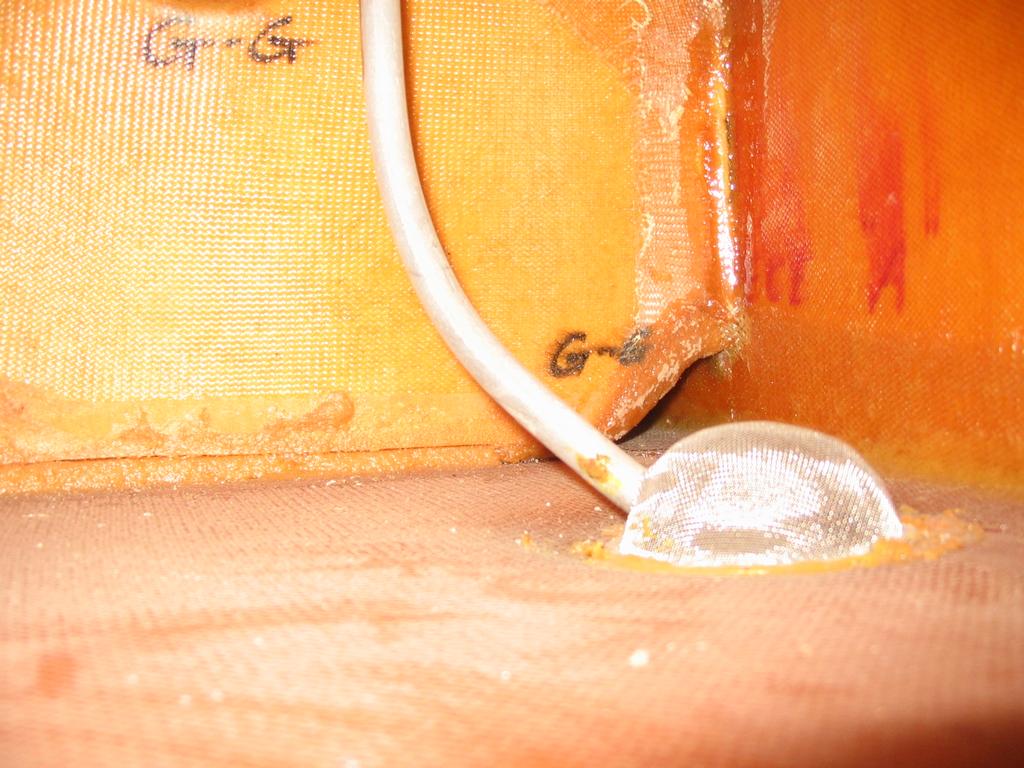

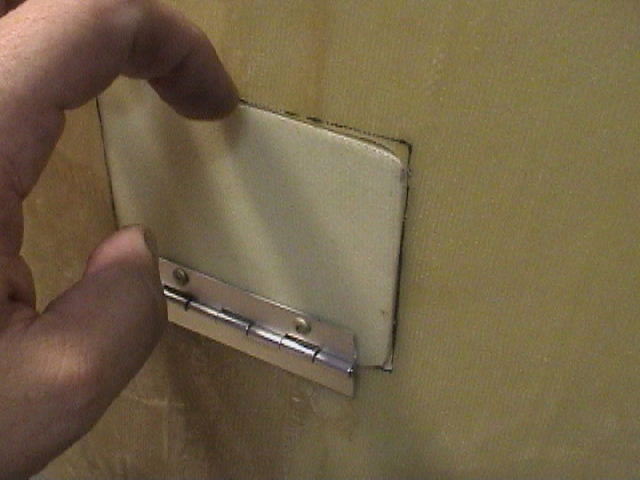

Dragonfly Fuel System

Alphabetically by Filename

JPG/GIF Still Photos

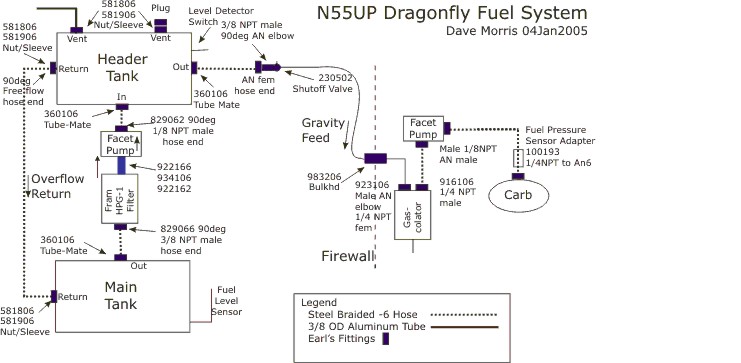

Fuel System Diagram Jan2005.jpg
Fuel System Diagram Jan2005.jpg

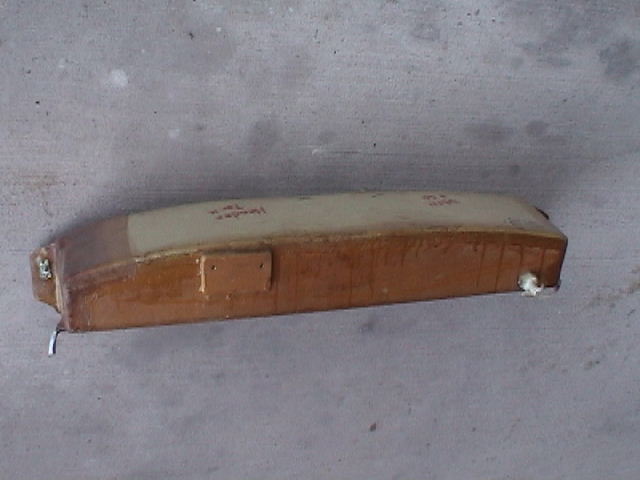

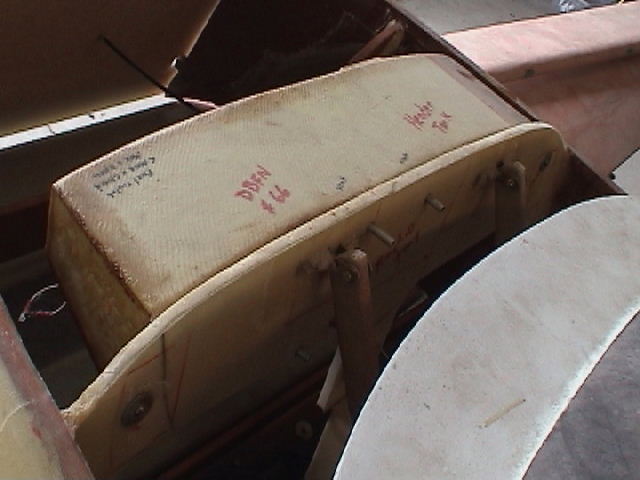

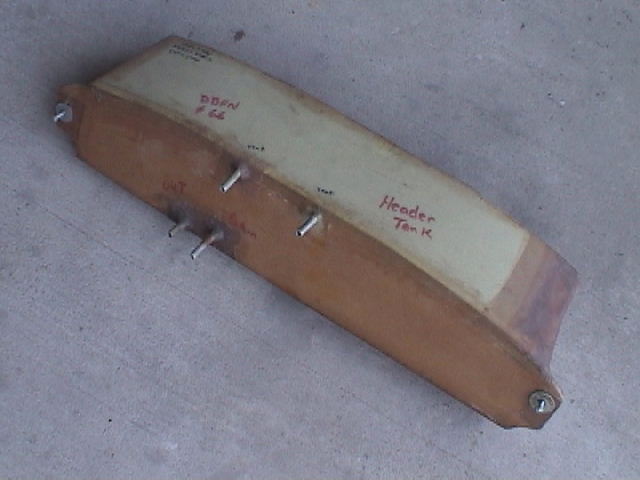

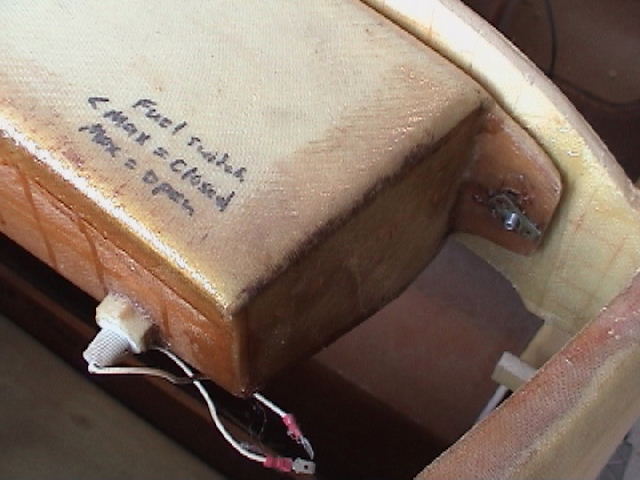

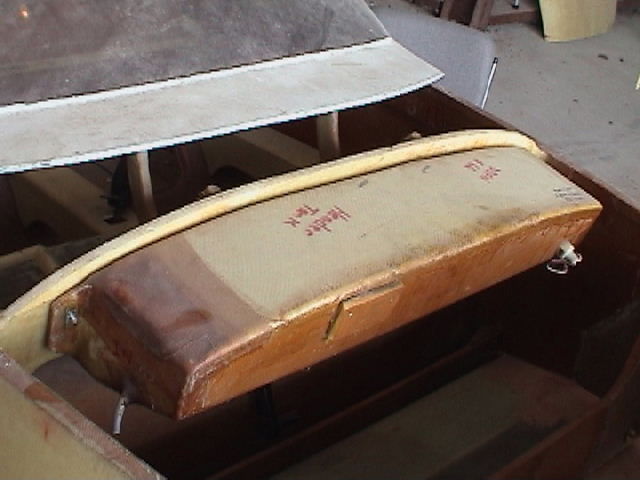

Nate Rambo built this header and then described it in DBFN number 66. It's pretty close to the one described in the article, but it has 2 vent tubes.

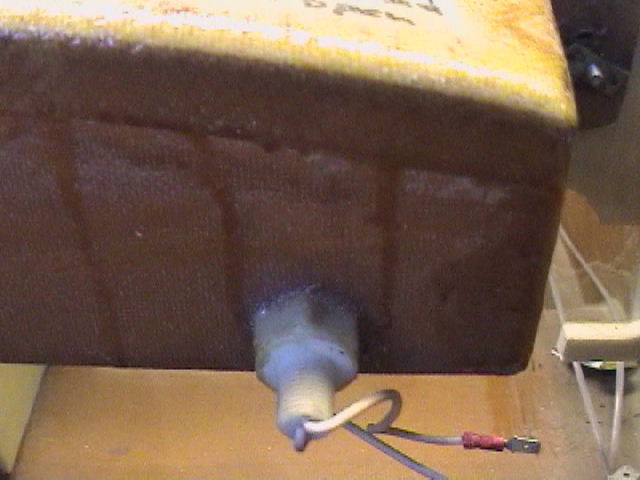

This is an on-off level detector that tells me when the tank is full. I will wire this to the feeder pump so the pump will not try to overflow the tank when it is already full.

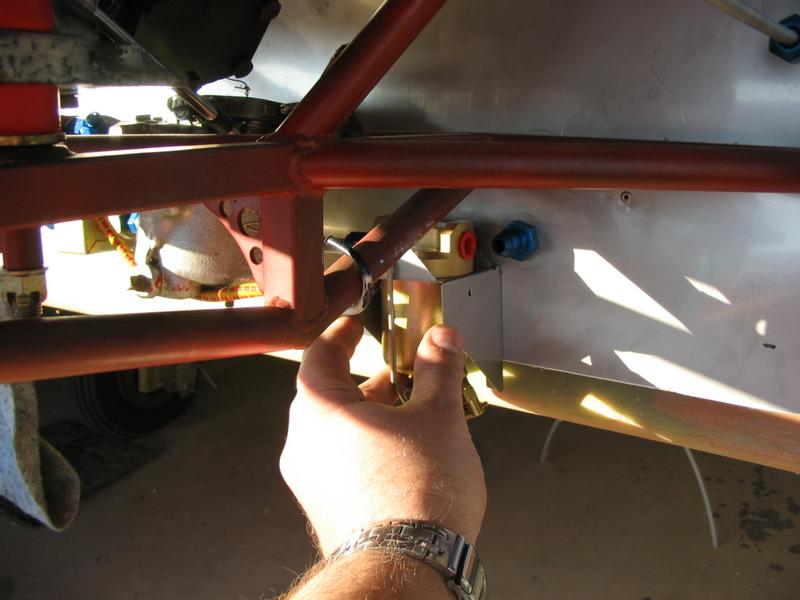

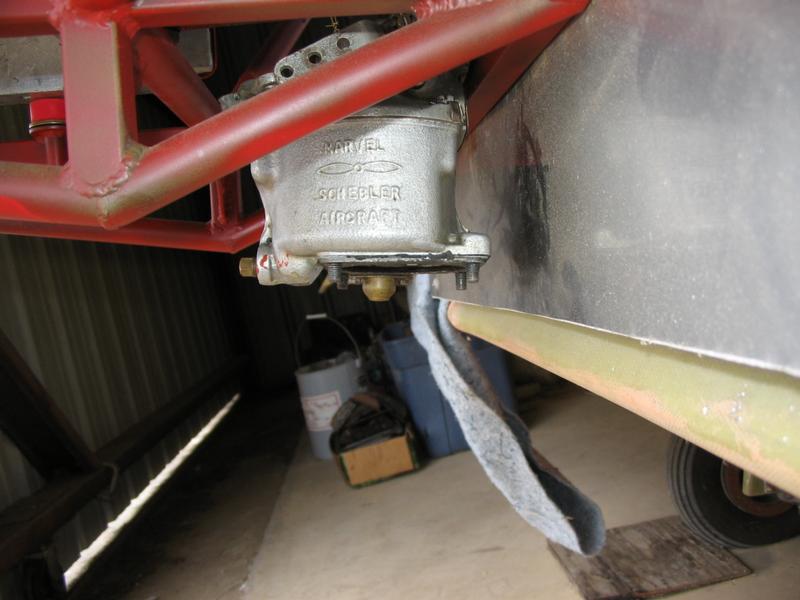

Shot of LH bottom of firewall showing space where gascolator will be mounted. Space to right of carb will probably be where I run the aluminum tubing between gascolator on this side and Facet pump (not shown) on the other side of the carb

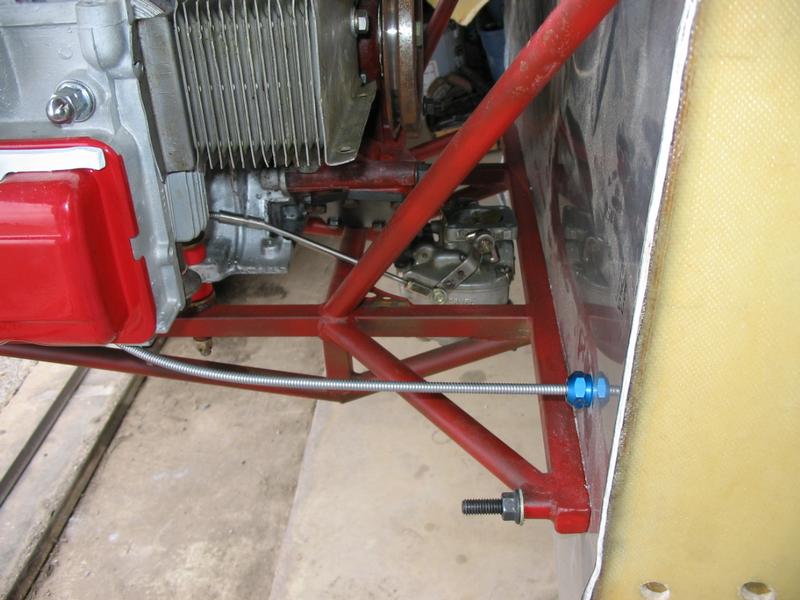

Lower left of firewall showing throttle cable and bulkhead connector

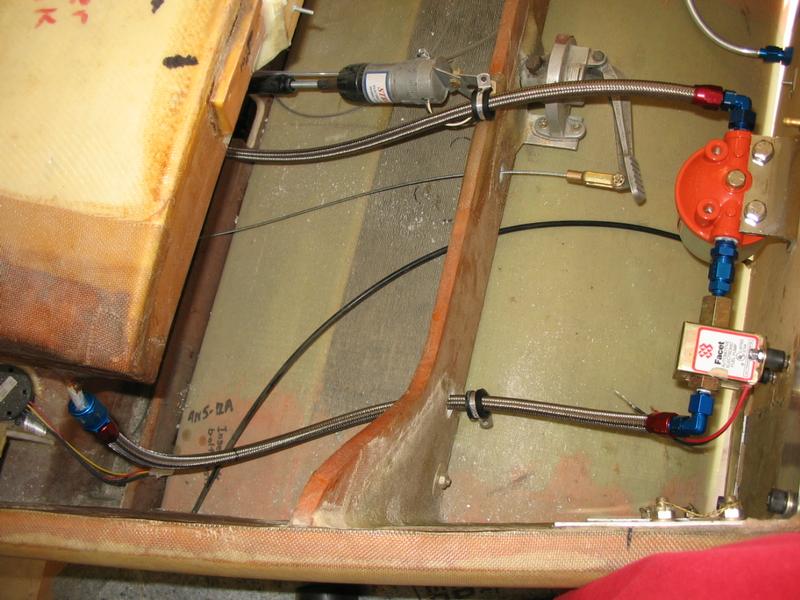

Fram filter and Facet pump with steel braided hoses hooked up. Header tank on left. Scott brake cylinder and Strong pitch trim motor also visible at top.

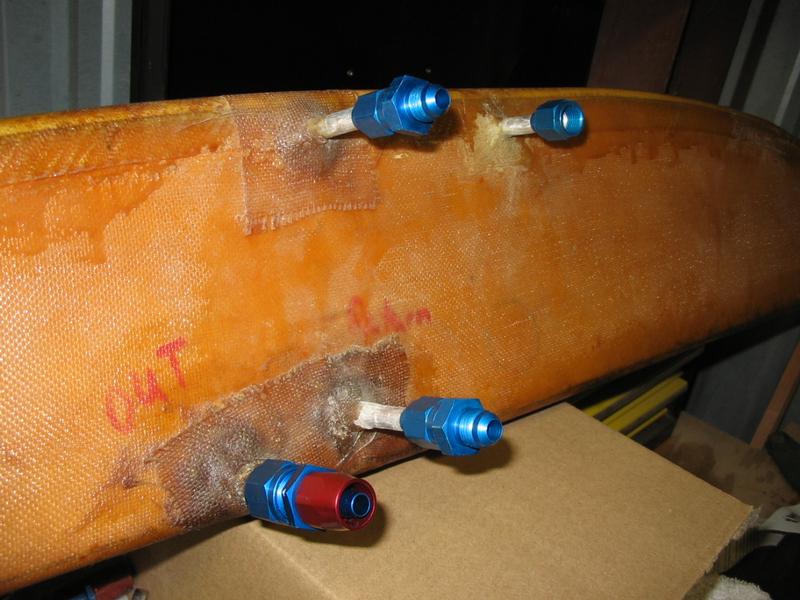

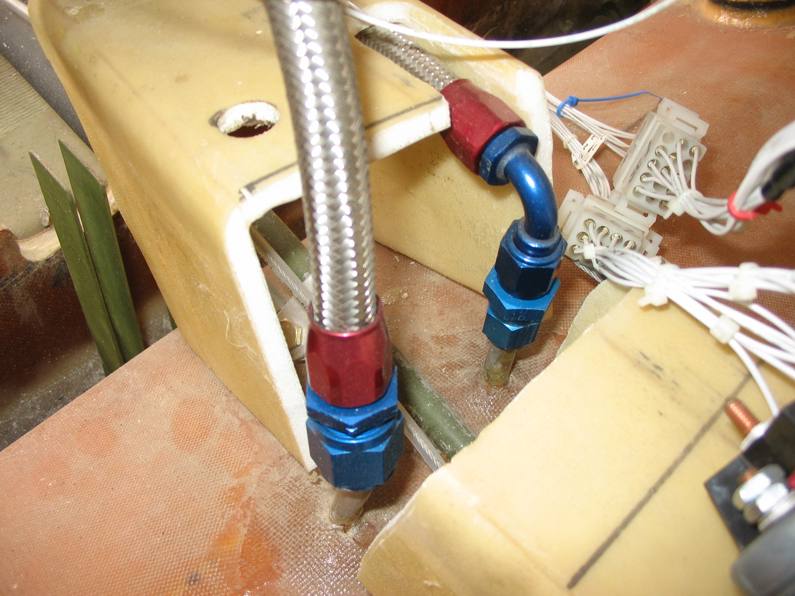

Various Earl's fittings on the removable header tank

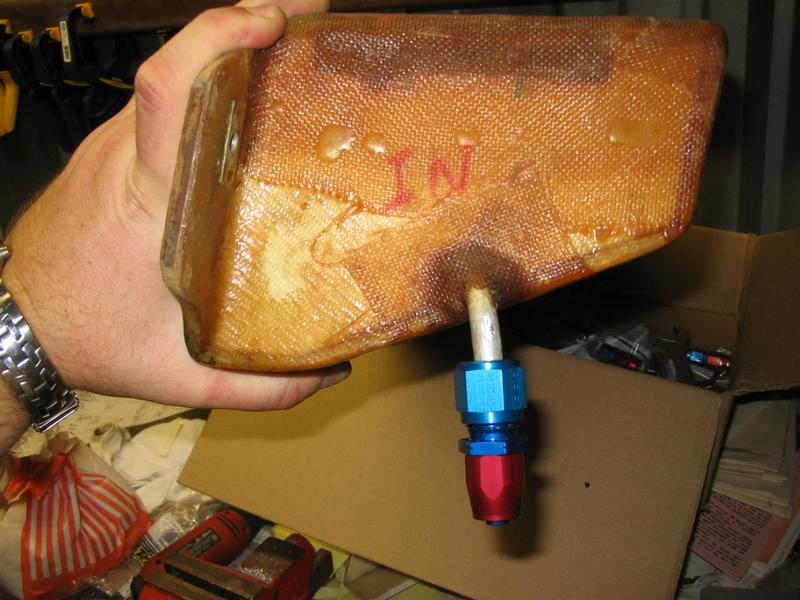

Fuel inlet with an Earl's Tube-Mate Auto-Fit tubing hose end being mocked up (hose not connected yet)
Closeup of Fram HPG-1 with its 3/8NPT male-to-AN male adapter attached to an AN female-to-1/8NPT into the Facet pump. Note rubber vibration mount (from Wicks) of the Facet also positions fittings properly.
Various Earl's fittings

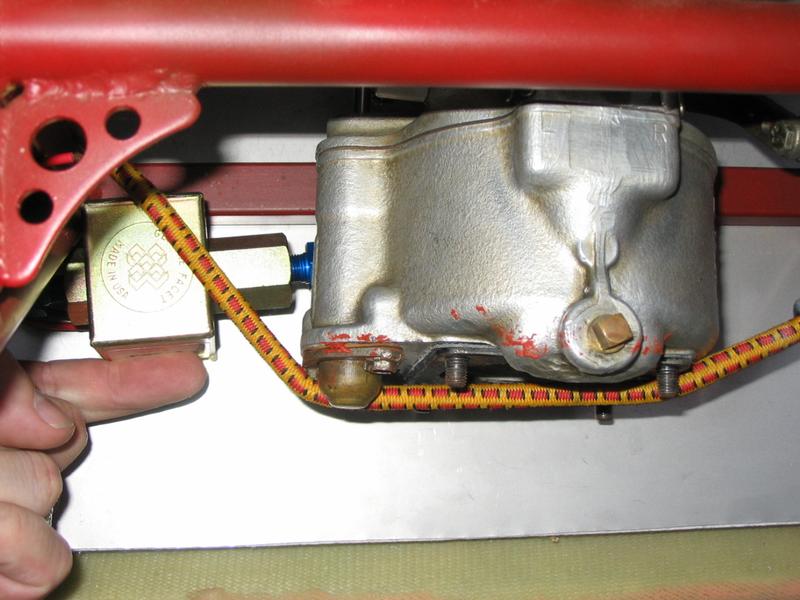

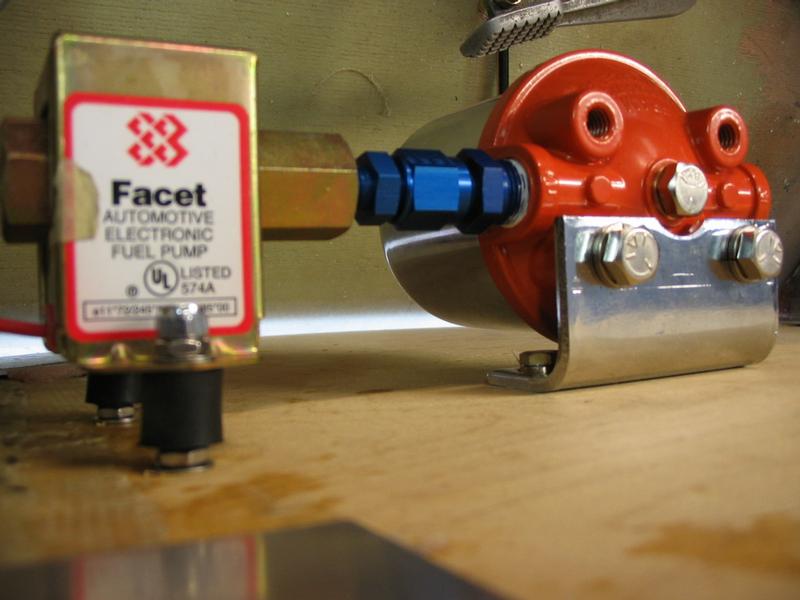

Trial fitting the carb and the Facet backup pump used to override the gravity feed if necessary

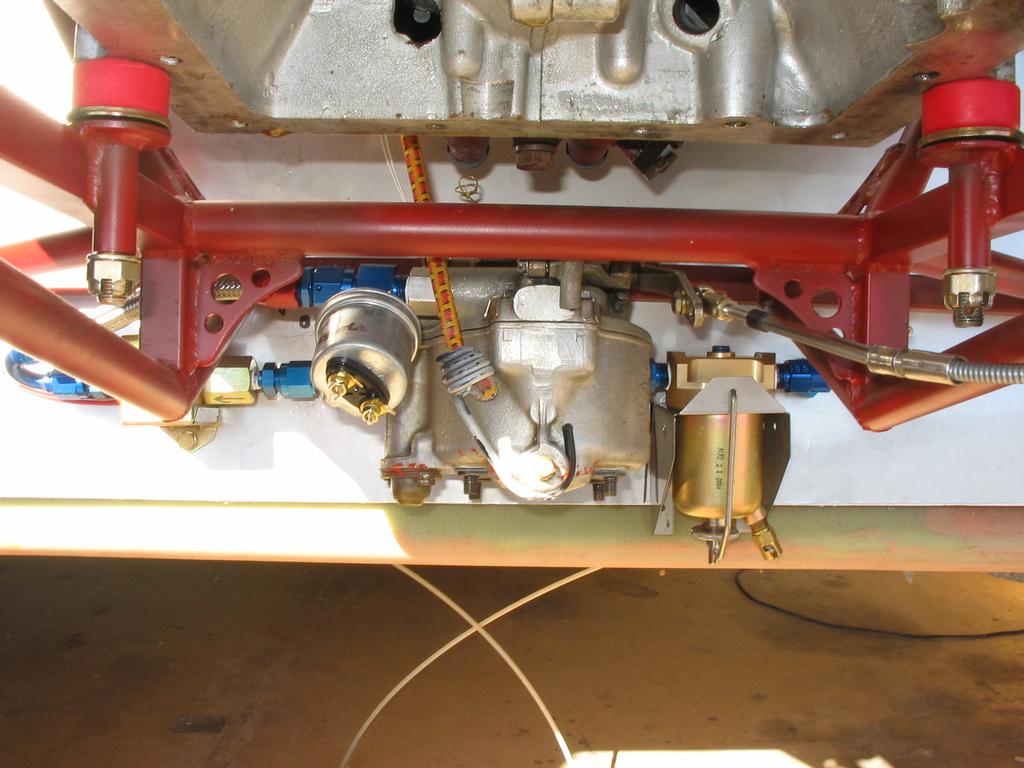

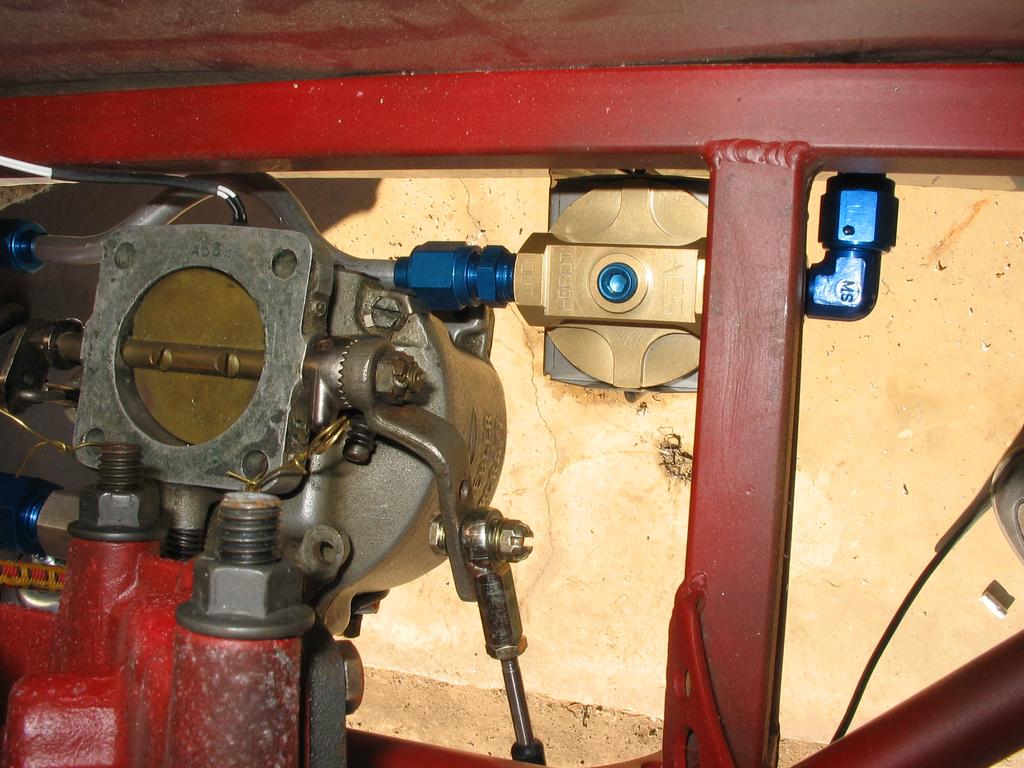

Left to right, Facet pump, fuel pressure sensor, carb, gascolator.

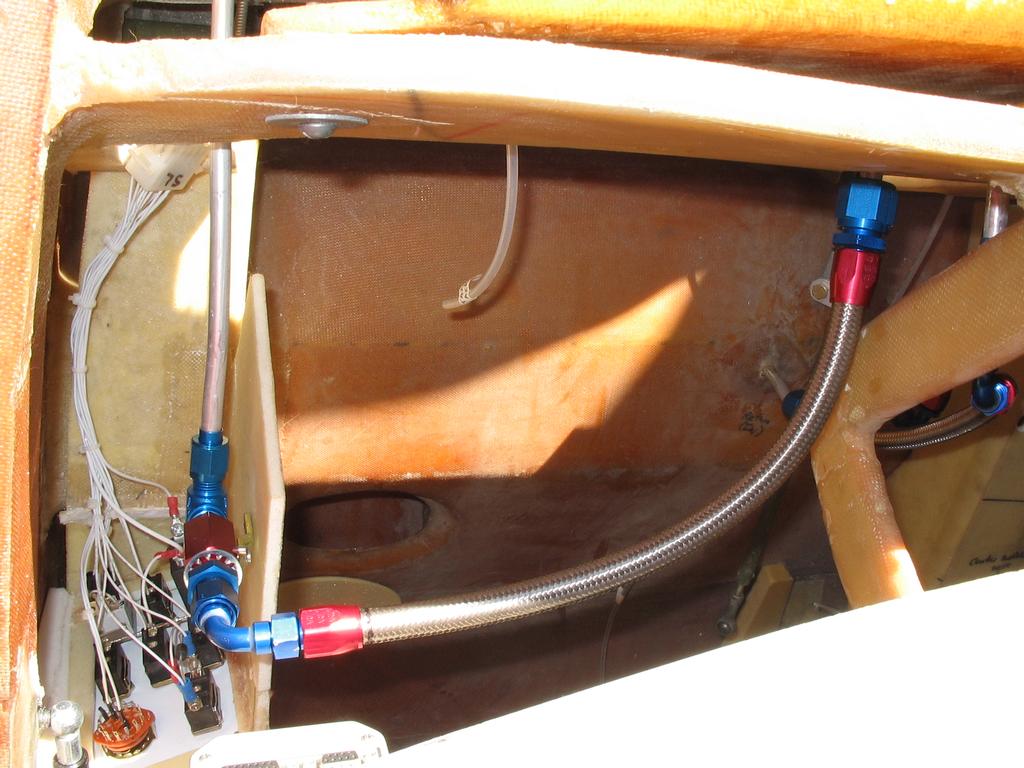

View of the space between left half of firewall and canard lift bulkhead showing lower firewall angle, throttle cable and fuel tubing to bulkhead fitting
Fuel will flow from the bulkhead connector (upper right) and a 90 degree adapter to the gascolator (center), then out of the gascolator to the left through a 3/8 aluminum tubing to the Facet backup pump to the left of the carb
Another view of the gascolator and bulkhead fitting before the 90 degree adapter is installed

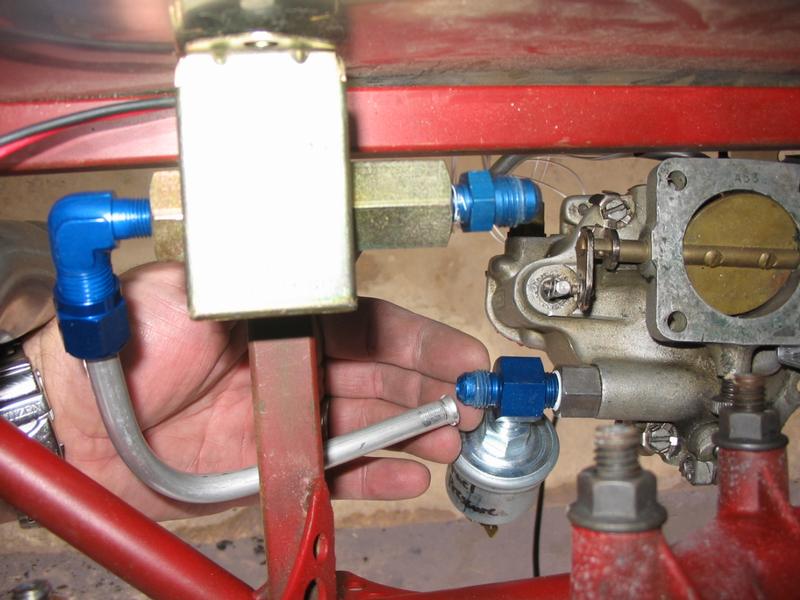

Fuel flows from Facet pump at bottom left through a 150 degree full flow hose end to the carb (top center) past a VDO fuel pressure sensor
Fuel pump moved above the motor mount rail to make room for exhaust downpipe.

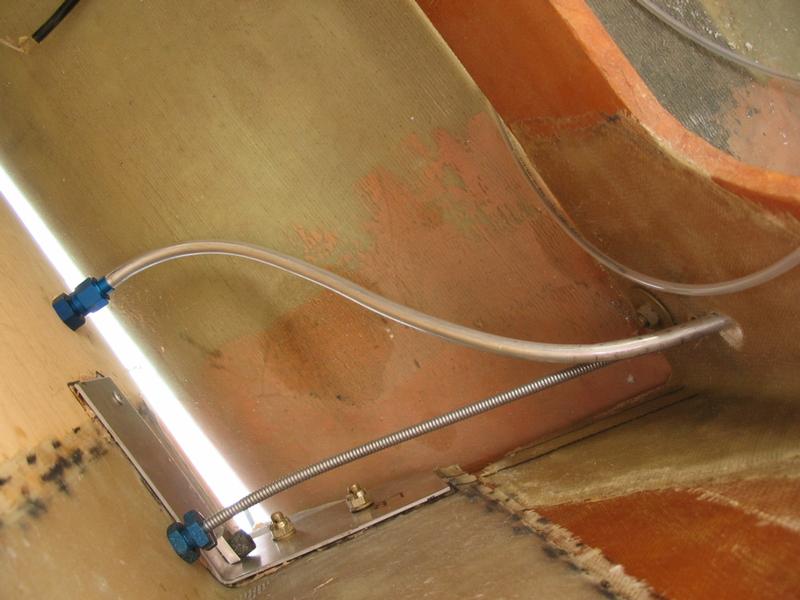

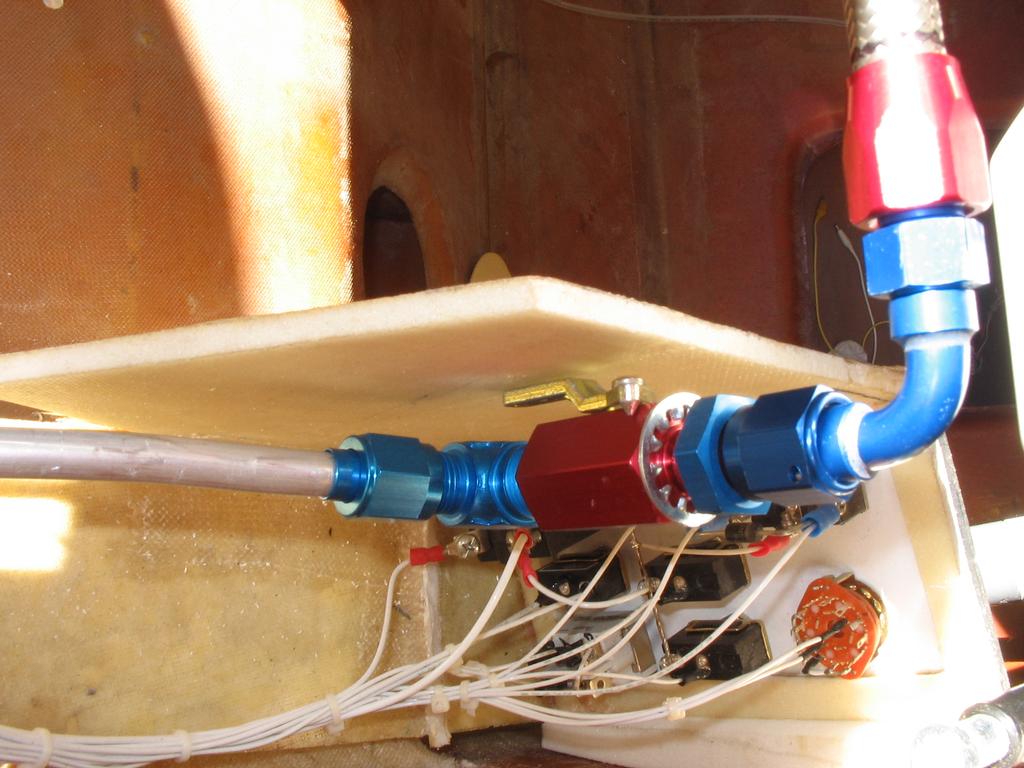

View down onto header showing hose from tank outlet (top right) running to the left to the top of the fuel shutoff valve. Aluminum hardline visible at left running forward to firewall bulkhead connector.
Closeup of fuel shutoff valve before fiberglass compartment has been installed. Also there will be a cutout right where the handle is, so you can actually reach the handle!
Overview of main tank and header plumbing

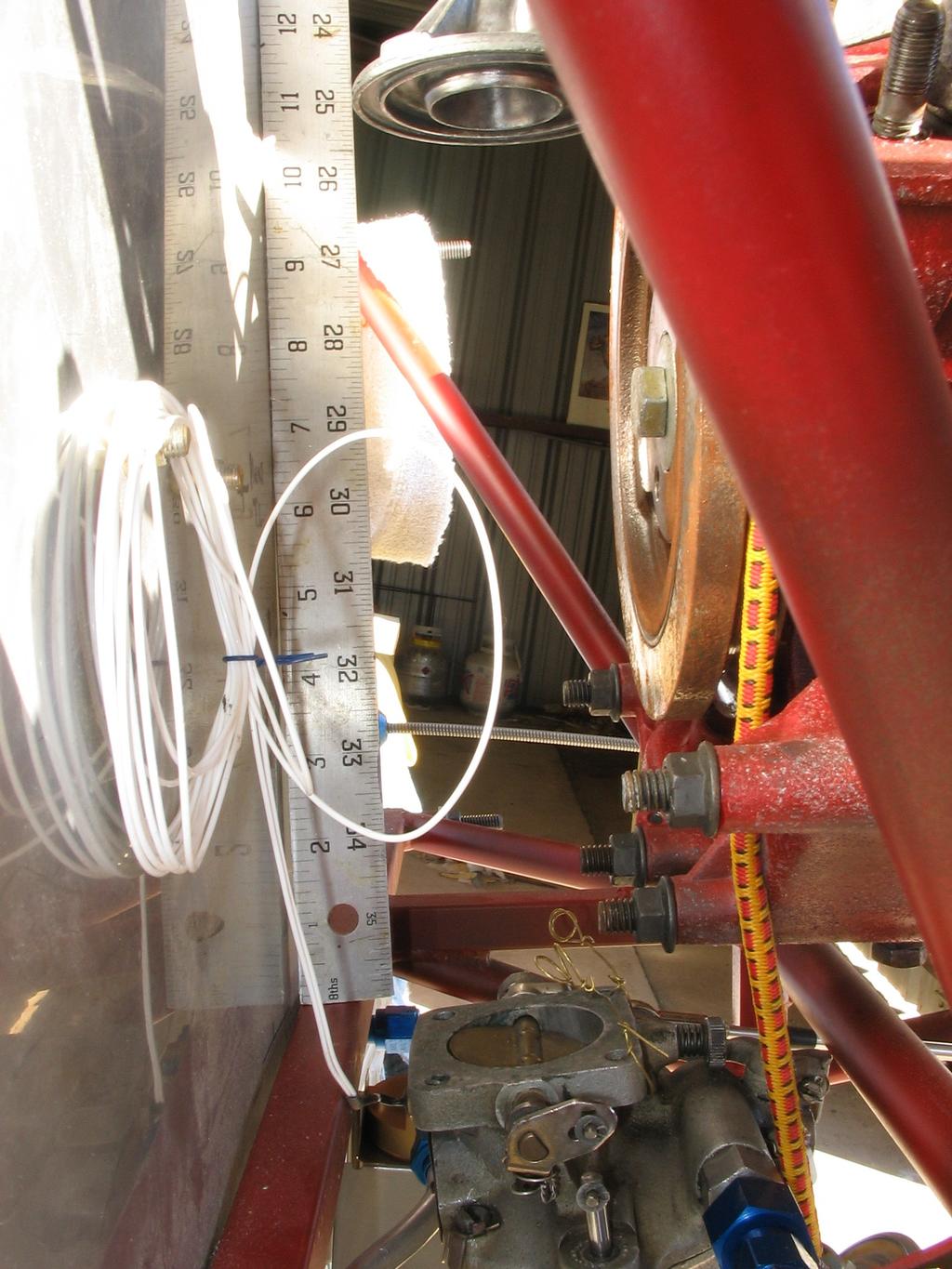

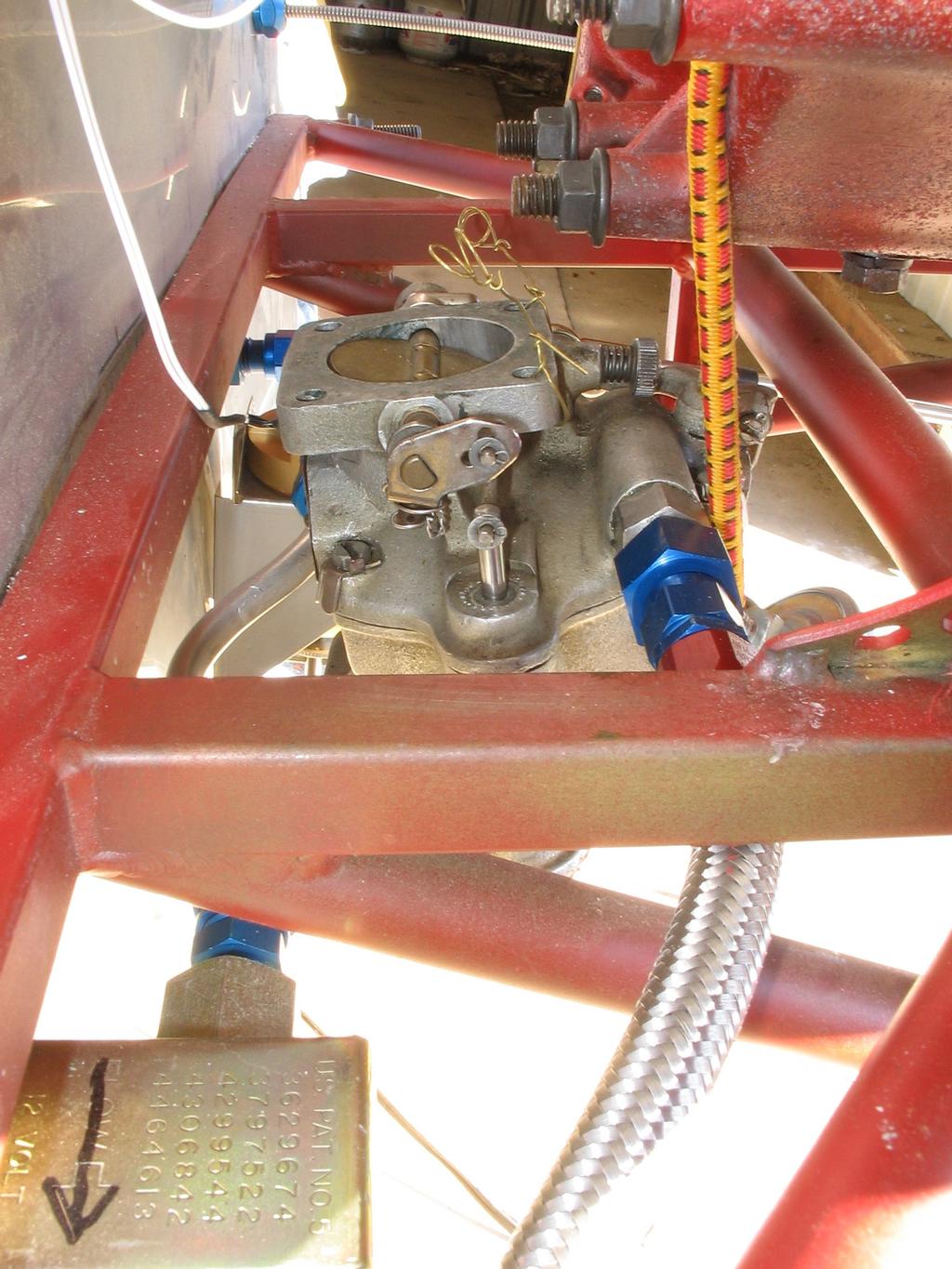

You can see the carb temperature probe at the left, with the white wires coming off it. Also barely visible at right the fuel pressure sensor adapter and VDO sensor between the steel braided hose and the fuel inlet on the carb.

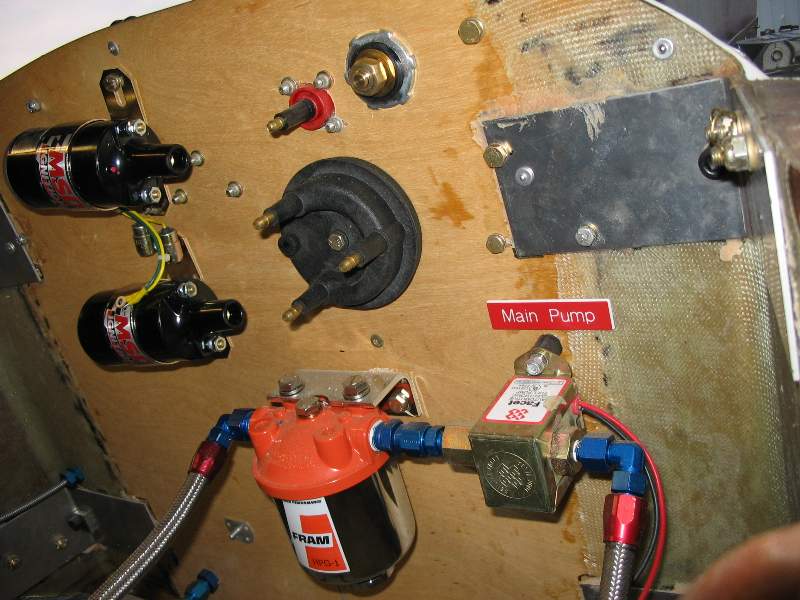

Cold side of firewall where Fram HPG-1 filter and Facet pump are located to pump fuel from Main tank to Header tank via steel braided hoses
