Dragonfly Corvair Induction

Alphabetically by Filename

JPG/GIF Still Photos
Marvel Schebler MA-3SPA 10-4894 mounted on a Cessna 172 airbox for carb heat and cabin heat. Too bad I won't be able to use this... the heat box is too high.
This is a Marvel Schebler MA-3SPA 10-4894 designed for an O-200, with accelerator pump (meaning no primer necessary) and mixture control
Foreground the accelerator pump, to the right the fuel inlet, far right the mixture lever, back center the throttle lever

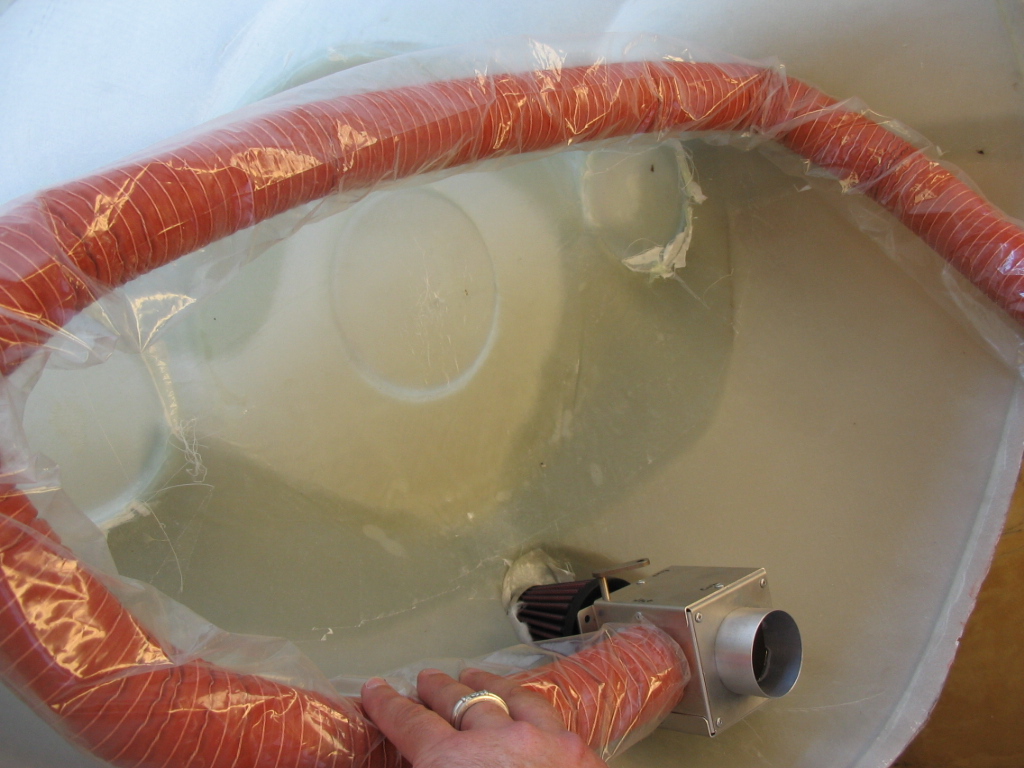

Picture 009.jpg
Picture 009.jpg

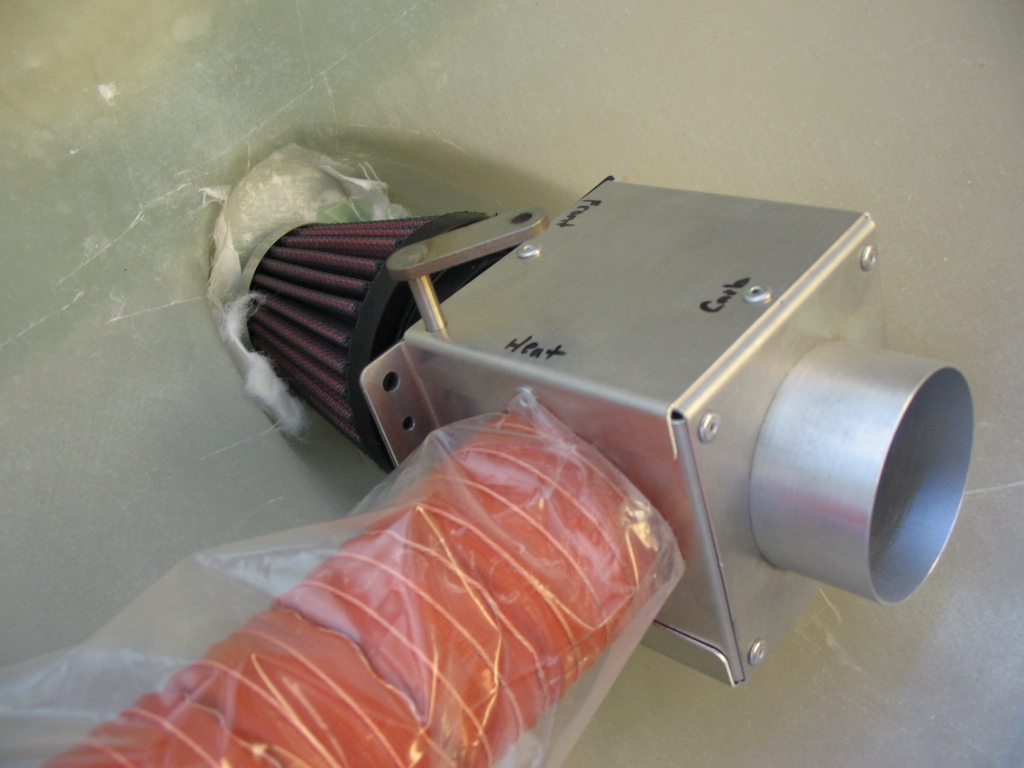

Picture 010.jpg
Picture 010.jpg
